This is Prelude helms guild (for my personal referance) This page is for my person referance:P |
|
|
|
|

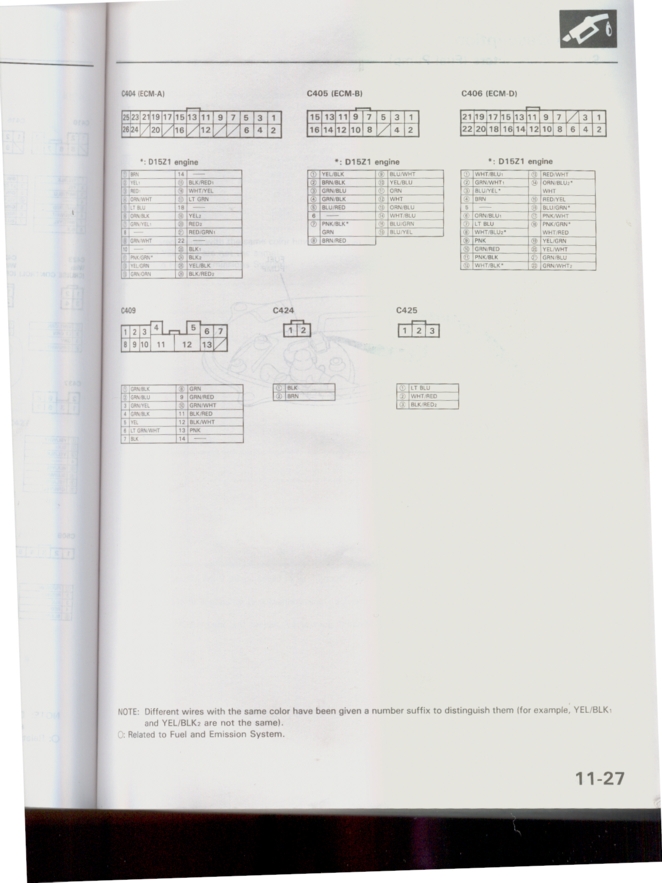

| civic ECU pin out |
 |
 |
Prelude ecu pinout |
| Prelude Wiring harness 1 |
 |
 |

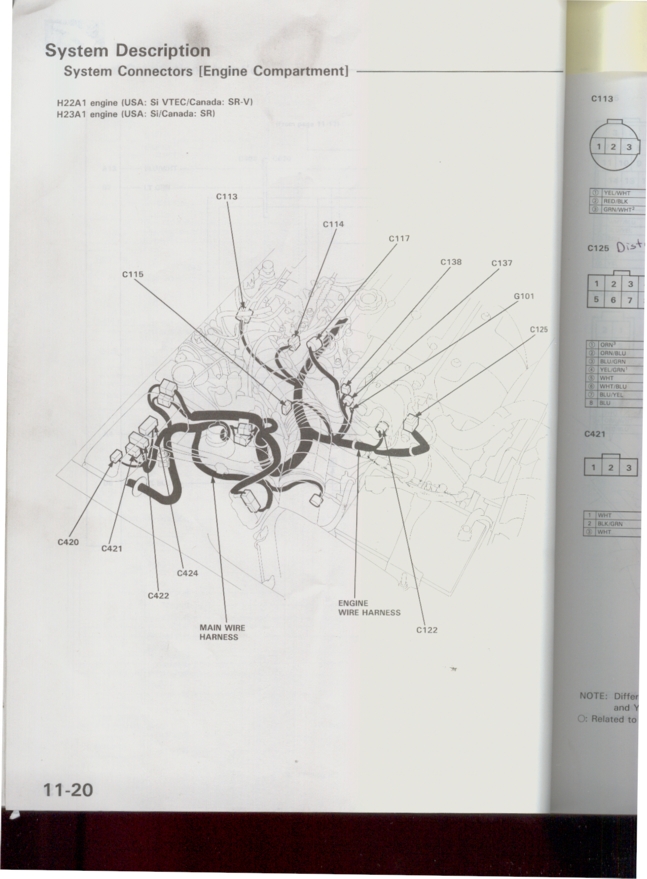

Prelude Wiring connectors1 |
| Prelude Wiring harness 2 |
|
 |

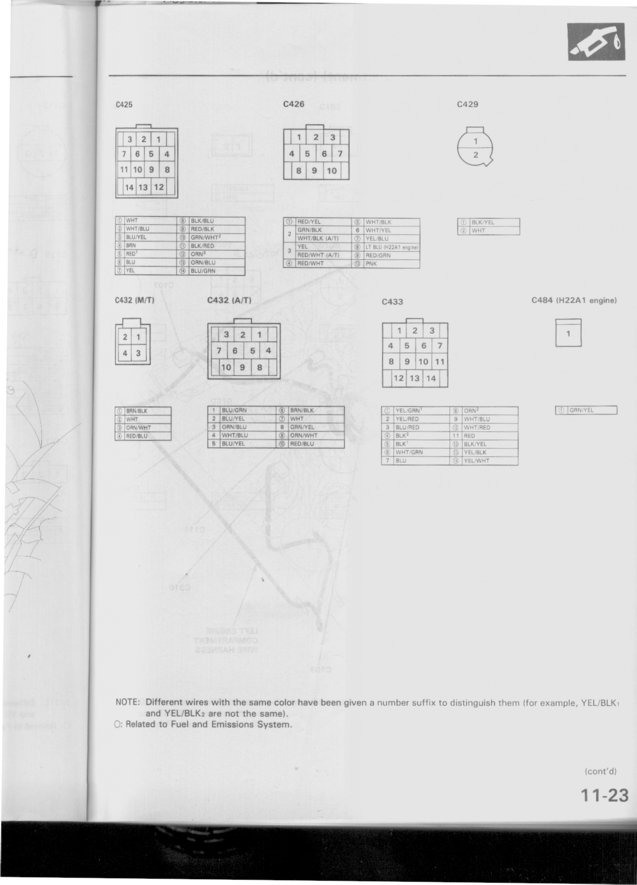

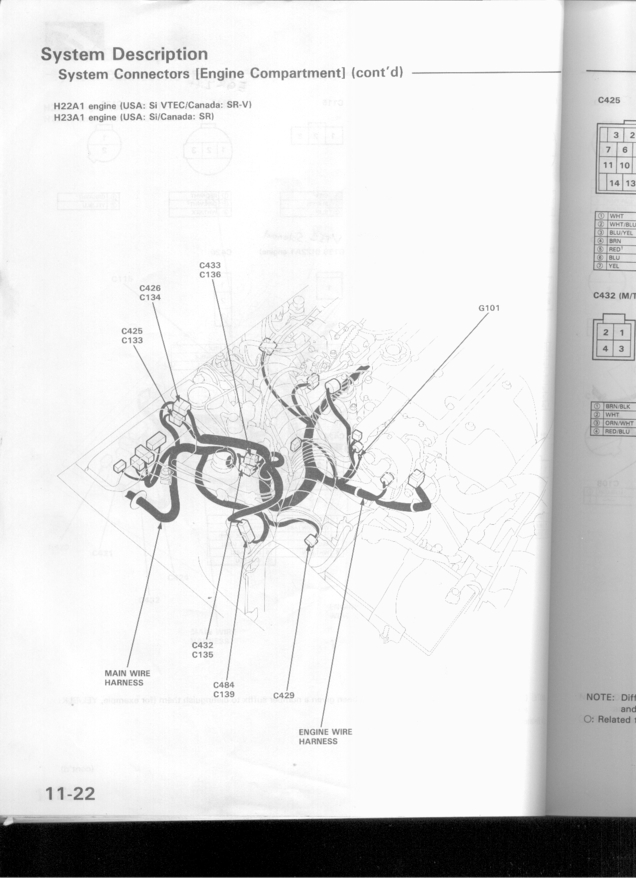

Prelude Wiring connectors 2 |

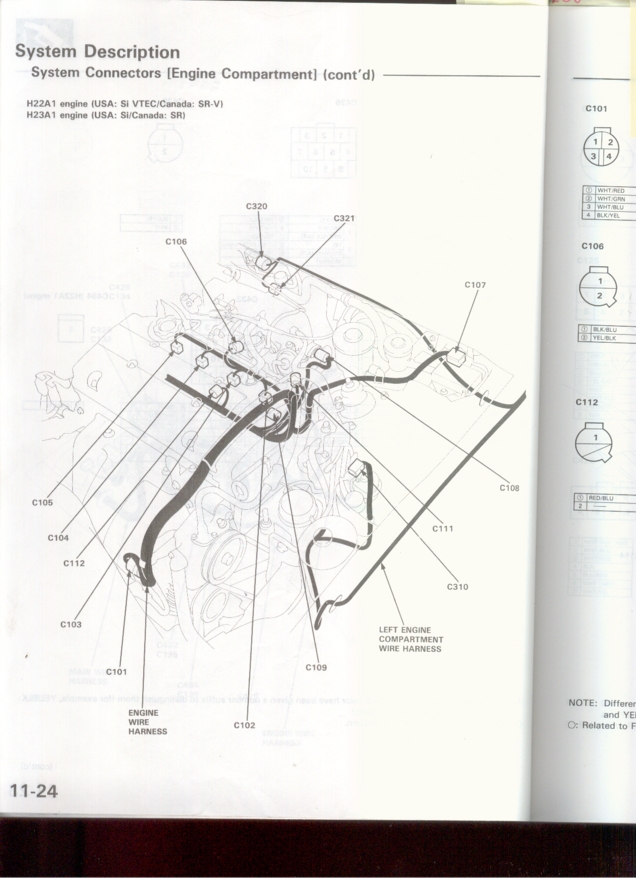

| Prelude Wiring harness 3 |
 |
 |

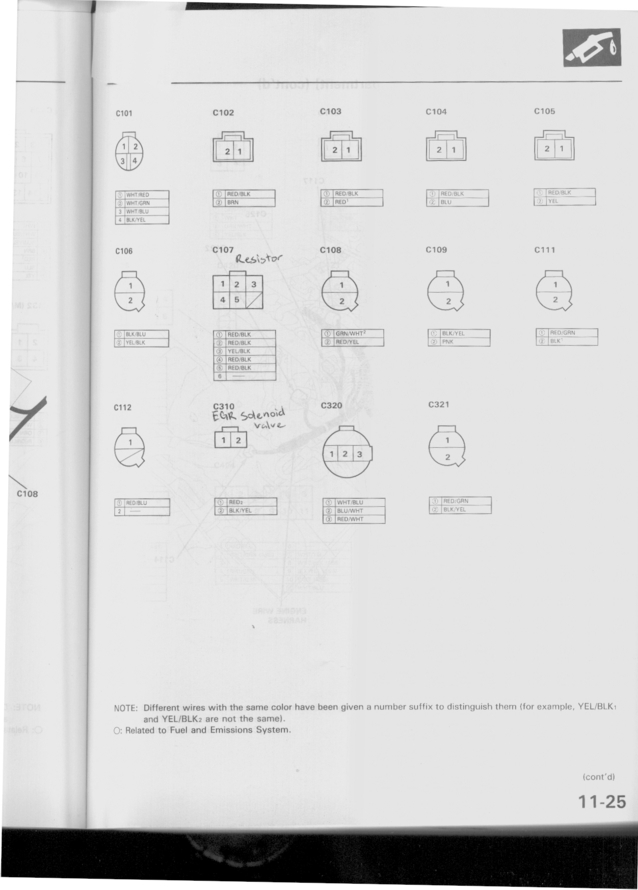

Prelude Wiring connectors 3 |

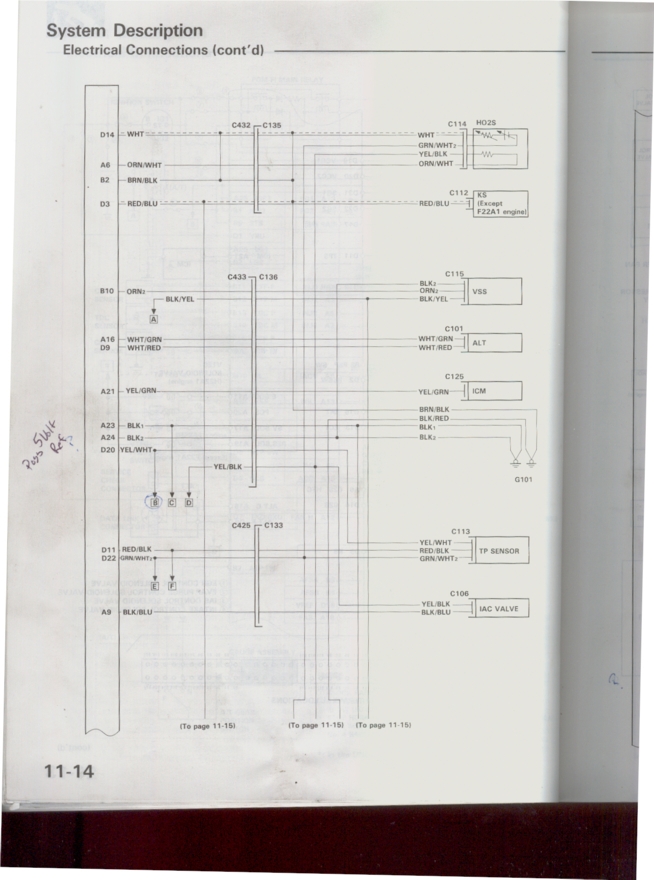

| Prelude Wiring diagram 1 |
 |
 |

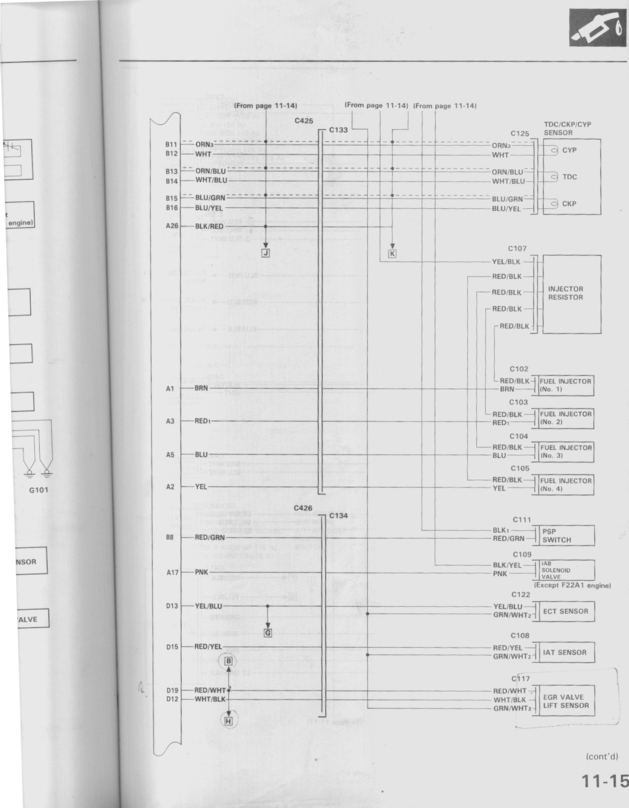

Prelude Wiring diagram 2 |

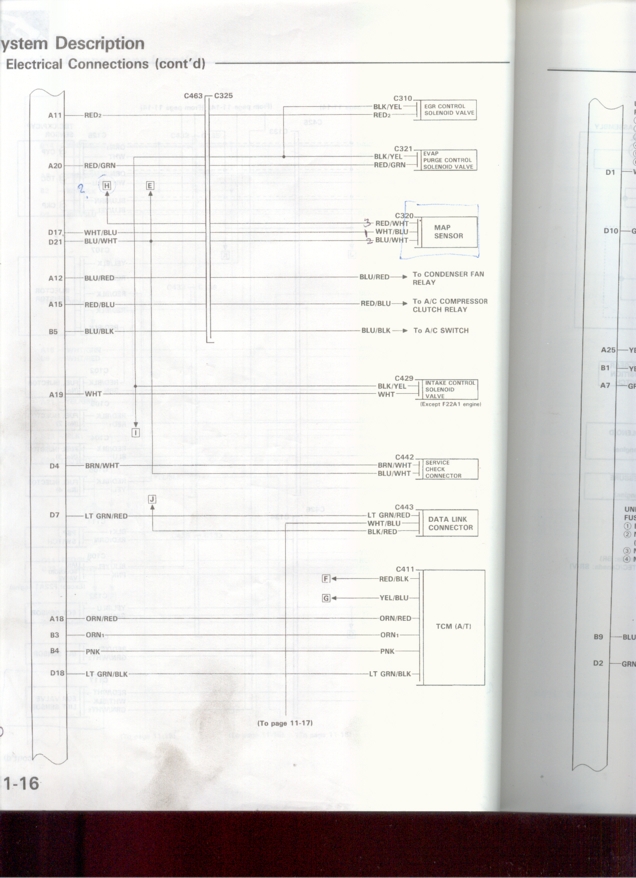

| Prelude Wiring diagram 3 |
 |
 |

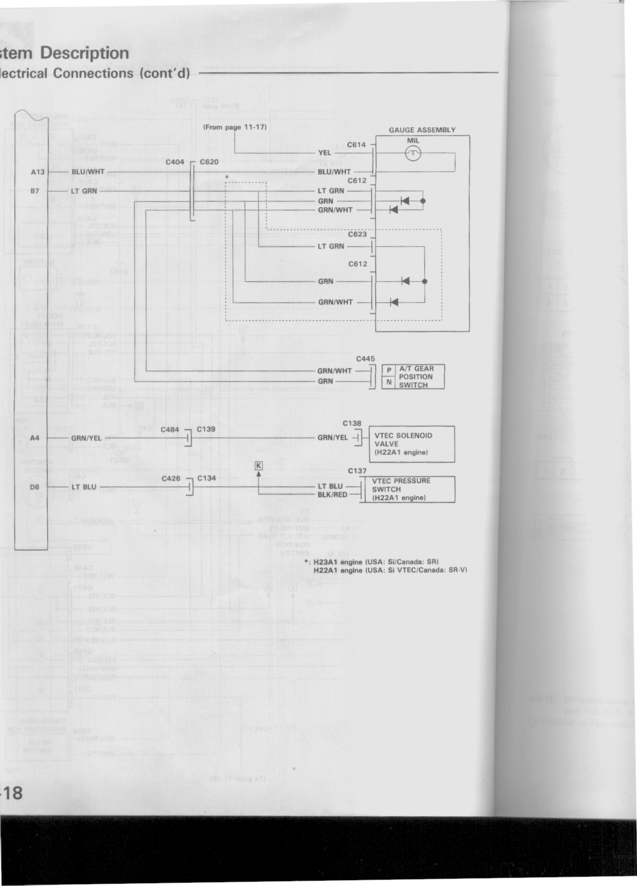

Prelude Wiring diagram 4 |

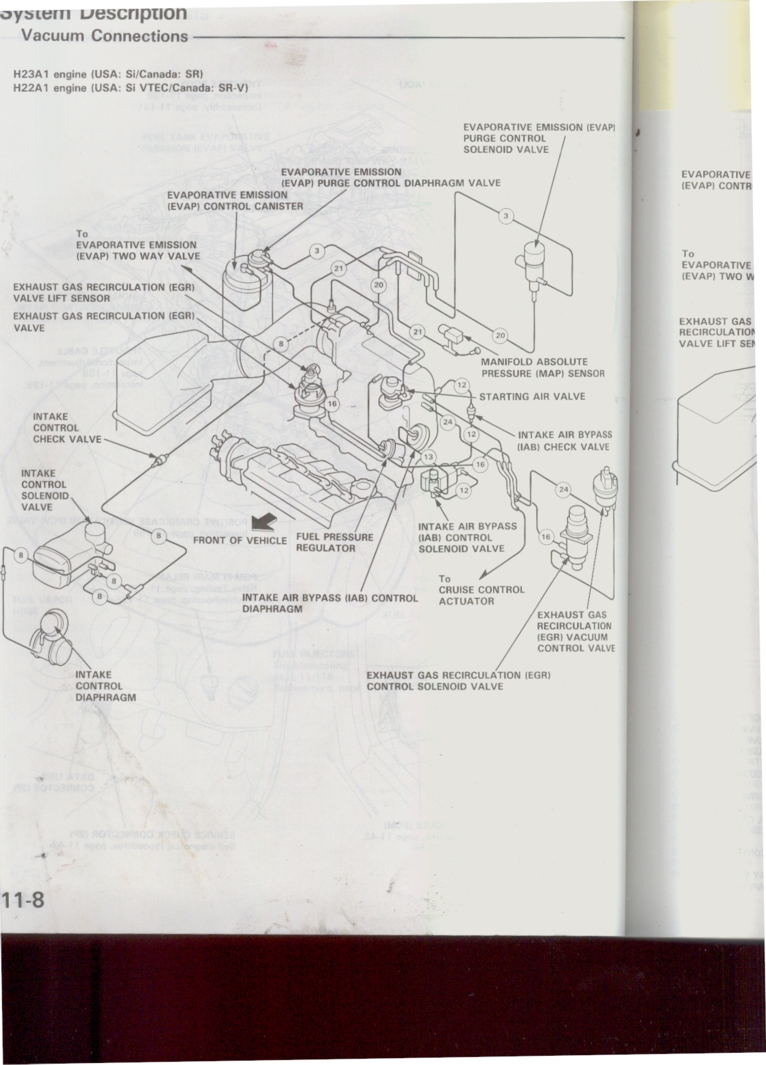

| Vacume diagram h22 |
 |
